Swan K1 PRO Base Combo Vertical Takeoff Wing Long Range Drone

Swan-K1 Vertical Take Off Wing The world‘s first fixed-wing drone without control surface for vertical take-off and landing. Swan-K1 has a vertical take-off and landing function, and users can have a flying experience at their fingertips without any flight field restrictions. The whole machine has a modular design, few structural parts, no other moving parts except 4 brushless motors...
View In Details


Scure Checkout

Swan-K1 Vertical Take Off Wing

Dolphin vtol wing

The world‘s first fixed-wing drone without control surface for vertical take-off and landing.

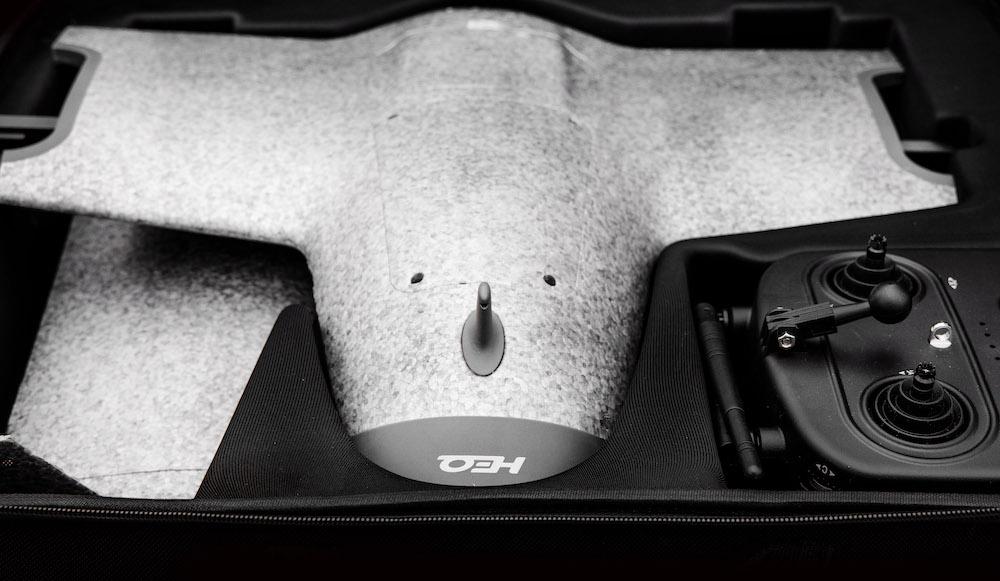

vtol drone carrying case

Swan-K1 has a vertical take-off and landing function, and users can have a flying experience at their fingertips without any flight field restrictions. The whole machine has a modular design, few structural parts, no other moving parts except 4 brushless motors, and high reliability. It greatly reduces the learning difficulty of fixed-wing UAV flight and improves user experience.

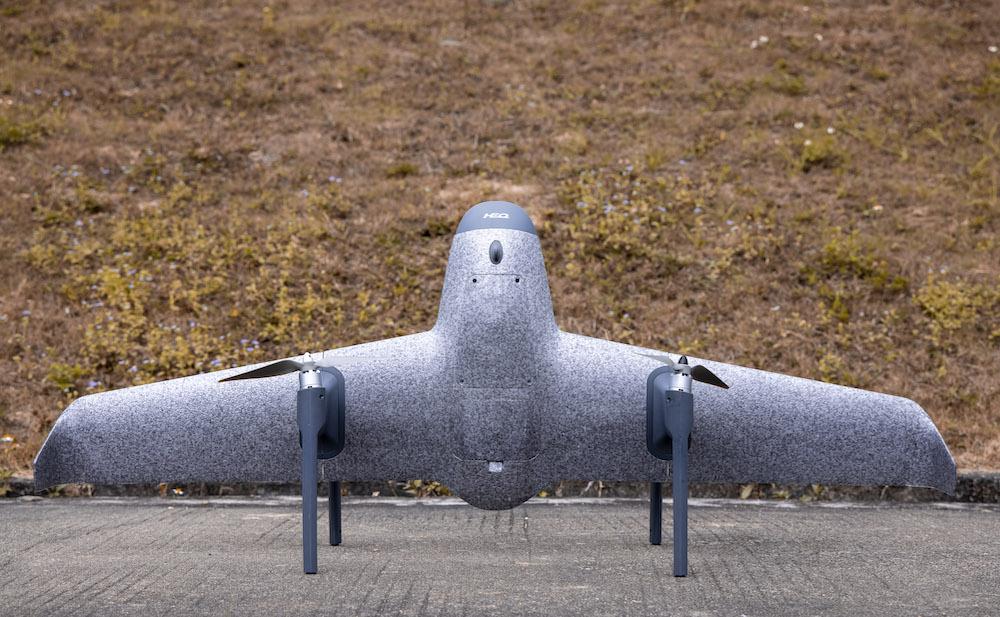

swang k1 vtol wing

Swan-K1 Specs

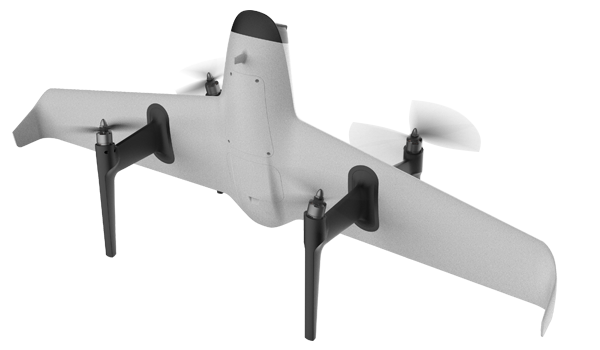

vtol drone

UAV parameters

  • Wingspan 1200mm
  • Height 450mm
  • Weight (including battery) 1.48kg
  •  Maximum load capacity 0.15kg
  • Flight time (fixed wing) 40min
  • Flight time (multi-rotor) 18min
  • Control radius 10km
  • Image transmission quality SD

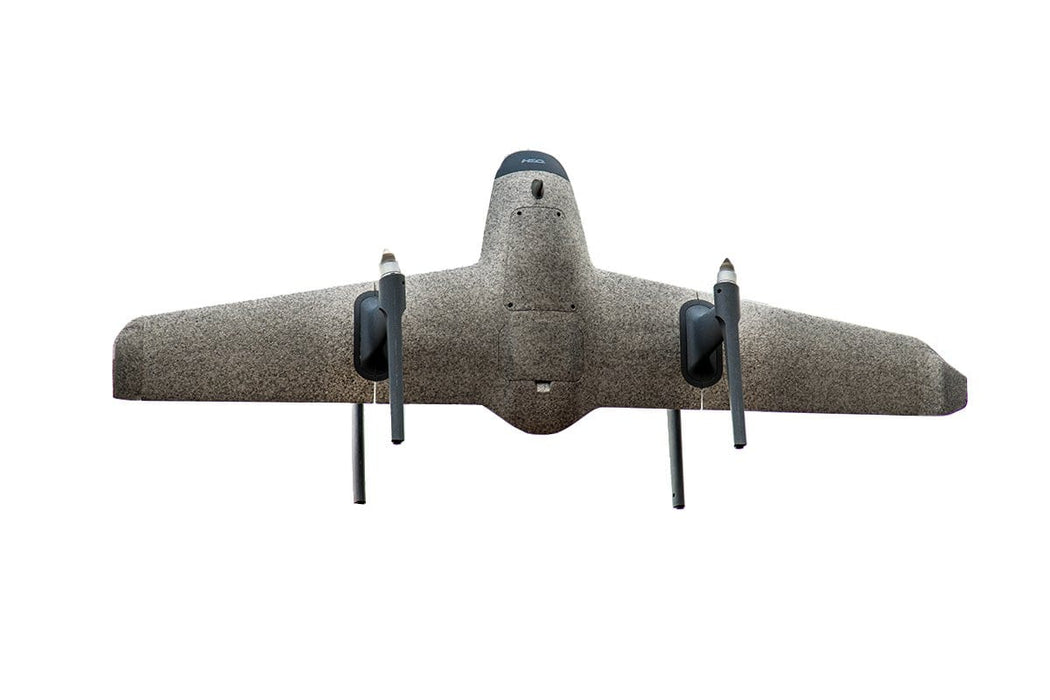

vtol drone wing

Remote control parameters

1. Working voltage 4.2V

2. Working current 100mA

3. Working frequency 2.400-2.483GHz

4. Battery life 20h

5. Size 130X 150X 20mm

6. Weight 525g

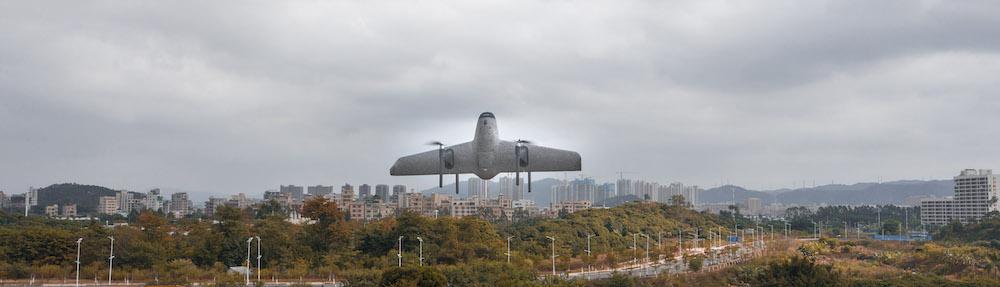

flying vtol drone



Q&A

1. Does the battery life include the take-off and landing process? Nominal endurance includes take-off and landing (measured at an altitude of 50 meters in a no-wind environment).

2.How high can the drone fly? The maximum flight altitude of the drone is 120 meters by default. The user can set it according to the actual situation. The maximum flight altitude is 500 meters.

3. What is the maximum range of the drone? The maximum range is 25.2km (measured at an altitude of 50 meters in a no-wind environment).

4. What types of sports cameras can be supported? Gopro 5, 6, 7, 8 andDJI osmo action.

5. Does the drone have GPS? Yes, it can rely on GPS to hover in the rotor mode.

6. Does the drone have an airspeed indicator? Have.

7. Can the drone return home with one key? Yes, you can return home with one key in both rotor mode and fixed wing mode.



SPECS

Airplane Specifications:

Brand Name: HEQ

Item Name: Swan-K1 PRO

Material: EPP

Color: Grey

Wingspan: 1200mm

Height: 480mm

Empty Weight: 1.13kg

No-Load Take-off Weight: 1.55kg

Maximum Load weigh: 350g

Motor: 2212 KV980

Propeller: 9060

Flight Time: Fixed-wing Mode 1 hour, Multi-rotor Mode 15min (windless weather)

Recommended Range: 30~40km

Remote Control Distance: 3-5km

Image Transmission Distance: 3-5km

Image Transmission Quality: SD

Charger: 17.2V 4A

Package Size: 550mm*475mm* 185mm

Independent Return: Support

Error Protection: Support

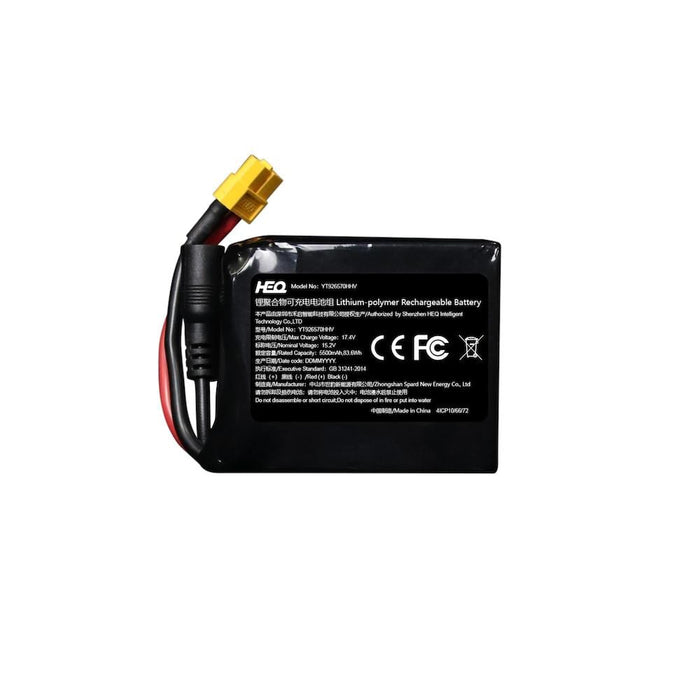

Battery: 4S 5500mah Lipo battery

Suitable Cameras: GoPro5/6/7/8; DJI OSMO Action

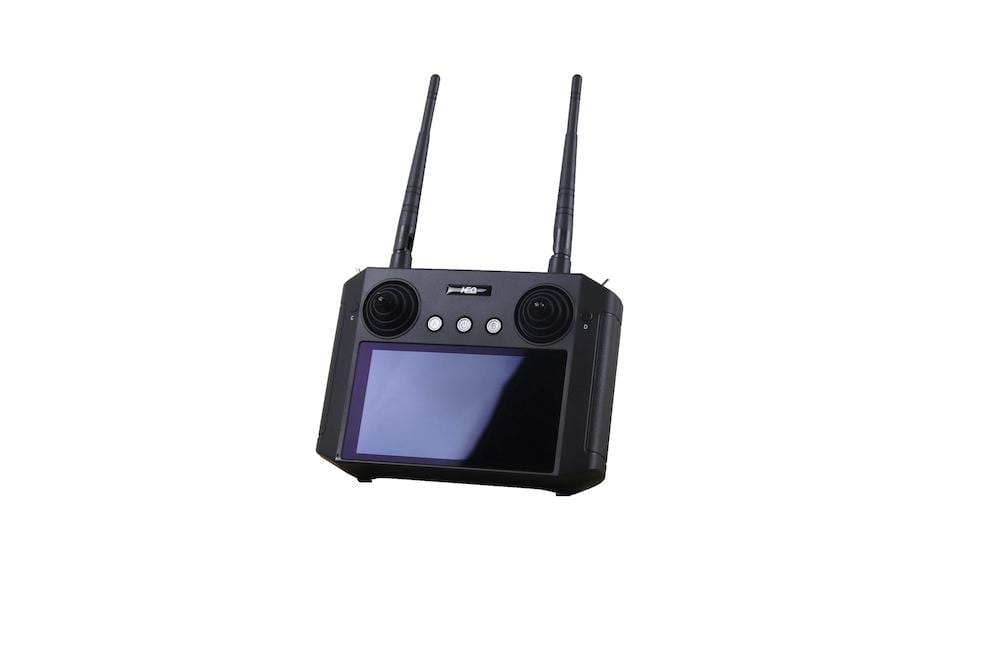

Remote Control Specifications:

Frequency: 2.400~2.483GHz

Screen:5.5 inch high brightness display

Endurance time:6-20 hours

Resolution:1920*1080

Working Current: 140mA

Voltage:4.2V

Weight: 530g

Dimension: 190*152*94mm

Remote Charge Port:Type-c cable

Battery:10000mah



Features:

lTake off and landing vertically,not room limited.

lEasy operation,it has one-click take-off and landing fuction.

lLight modular airframe, no tools needed, no messy wiring, no complicated connecting procedures.

lSupport adding all kinds of FPV goggles,enjoying FPV flight.

lWith an integrated 2.4GHz 5km video/data/RC transmission system.

lSuitable with action sports camera such as DJI Osmo Action,GoPro 5,6,7,8 etc,Enjoy beauty filming.

lNo control surface, adopting differential steering mechanism to alter the direction.

l40km Flying range.

l1 hour Fixed-wing endurance time, 18min Multi-rotors .

lSafe protection, low-vol/RC loss return-to-home and VTOL assisted protection.

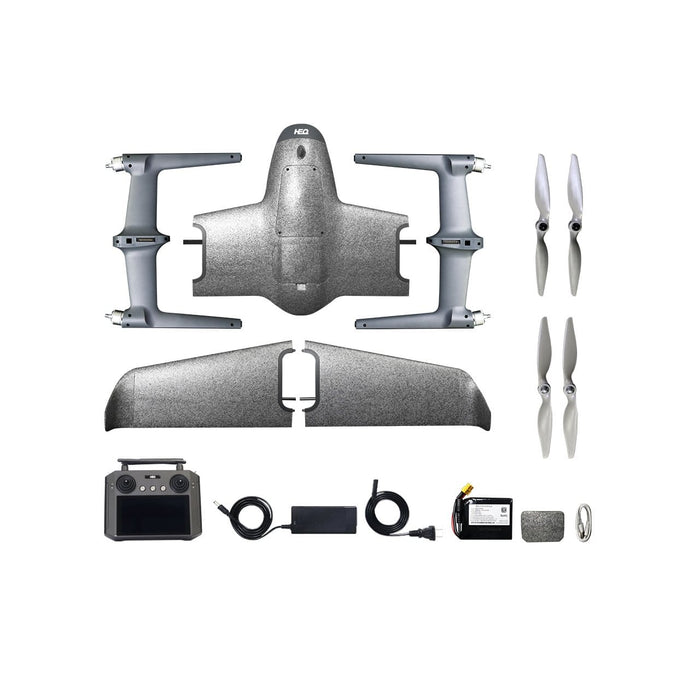

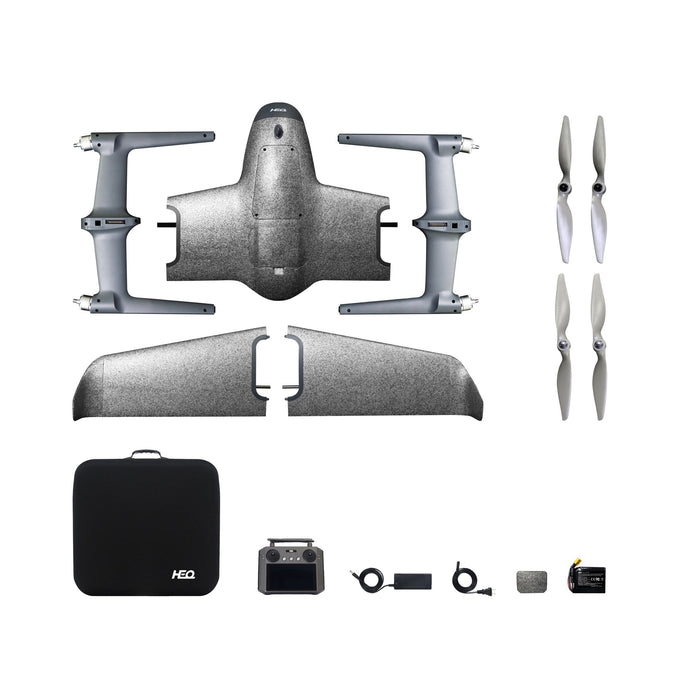

Package Included:

1x HEQ Swan K1 H-WING VTOL Airplane

1x 5.5 inch high brightness Remote Control

1x Power Charger

1x 5500mah 4s Lipo battery

1x 9060 propellers

1x Carrying case

1x Type-C Cable

1x Manual and Disclaimer
