Introducing  the Swellpro Splash Drone 4

Shipping Starts July 22

The Multi-functional waterproof flight platform

Swellpro Splash Drone 4 Sale

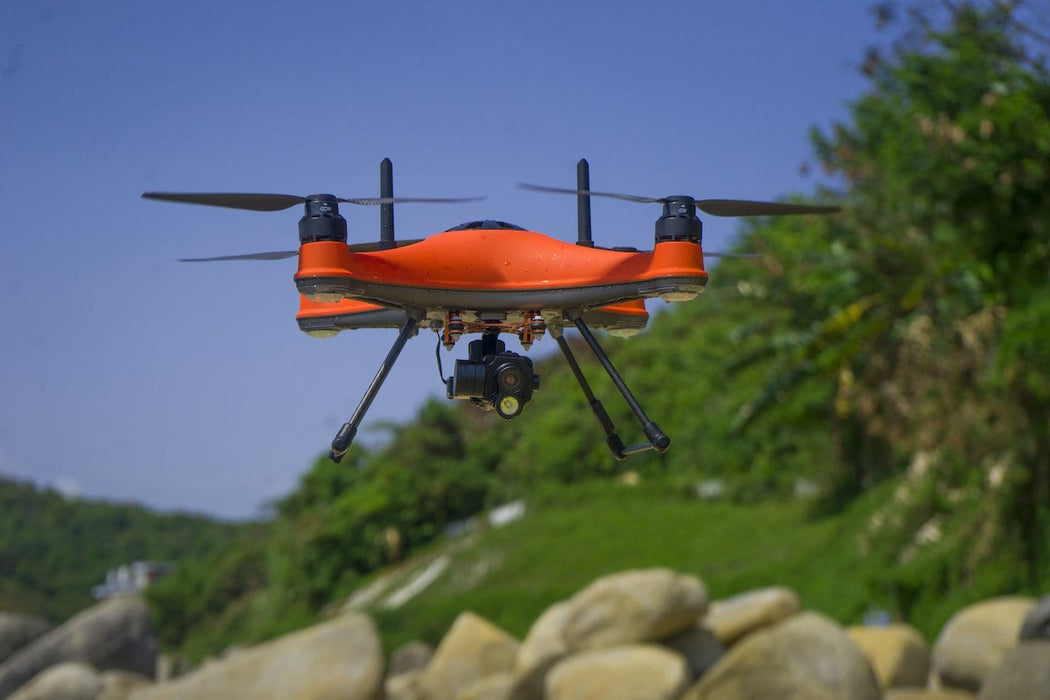

Splash Drone 4 is the 5th generation waterproof drone representing SwellPro and Urban Drones' 7 years of knowledge and understanding of drone waterproofing technology.

Splash Drone 4 is the all-new waterproof flight and float platform designed for multipurpose operation in any harsh environment.

A new benchmark for waterproof drones

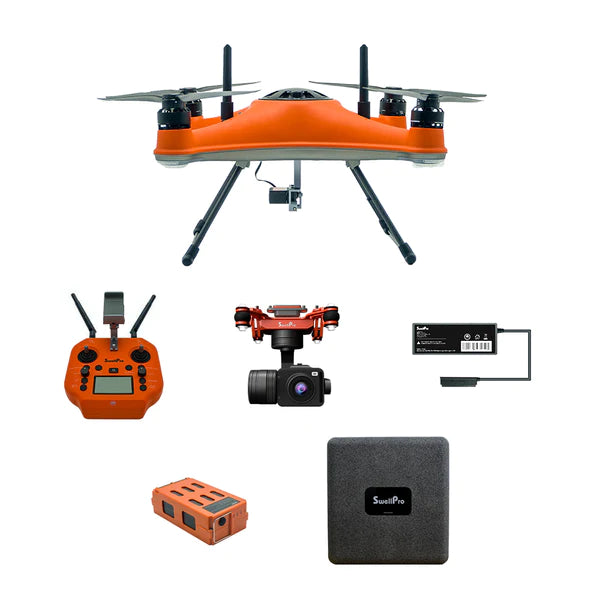

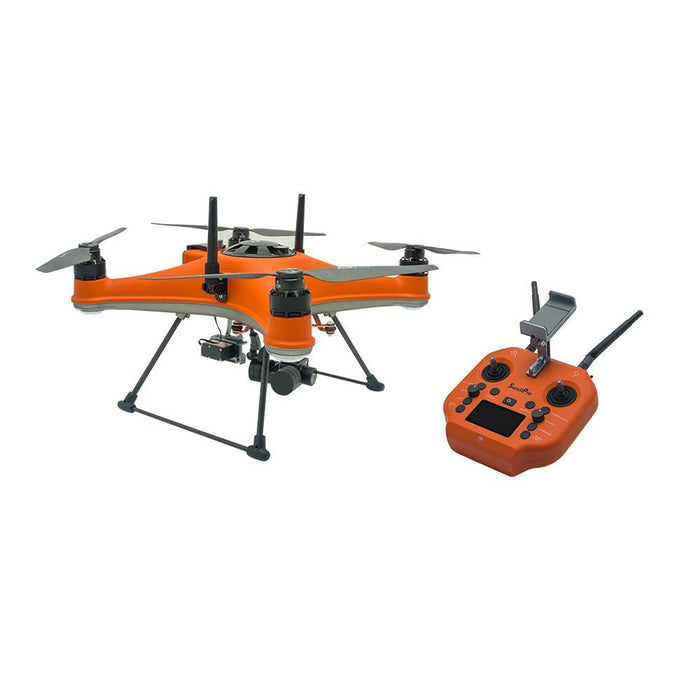

Splash Drone 4 features

Swellpro Splash Drone 4 waterproof Boat

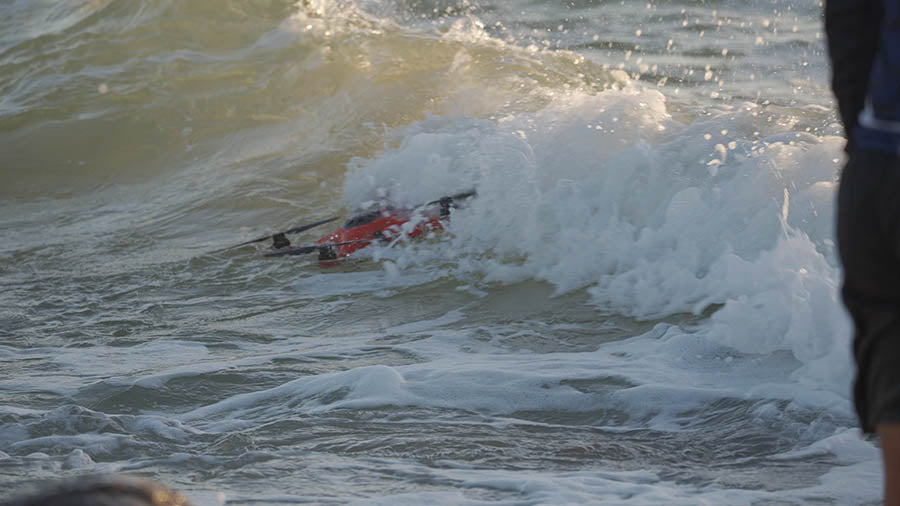

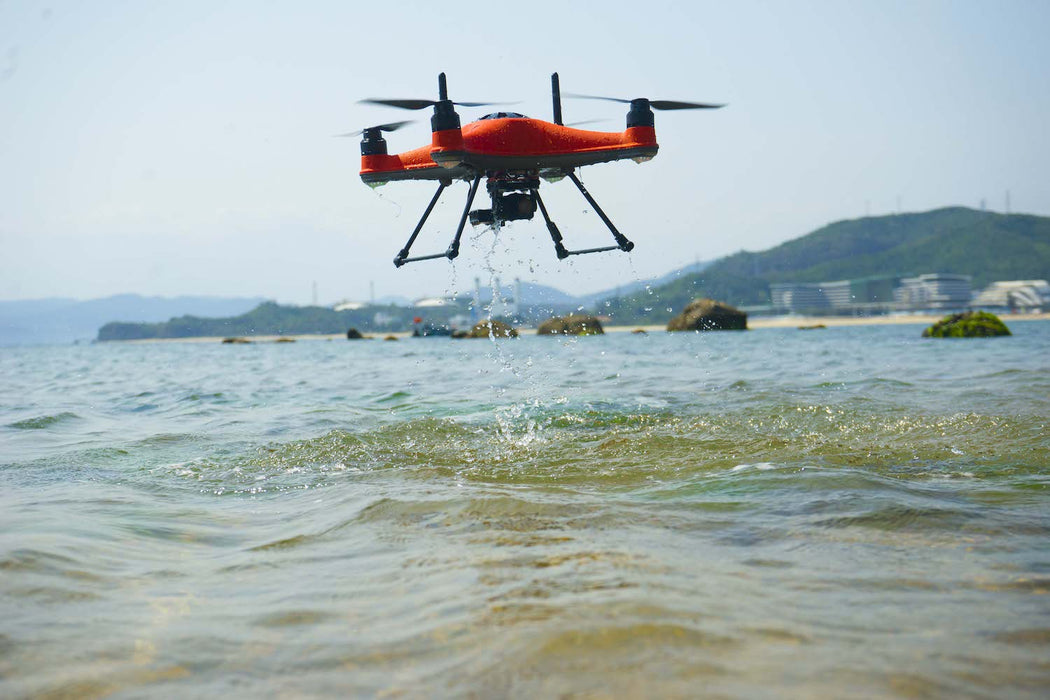

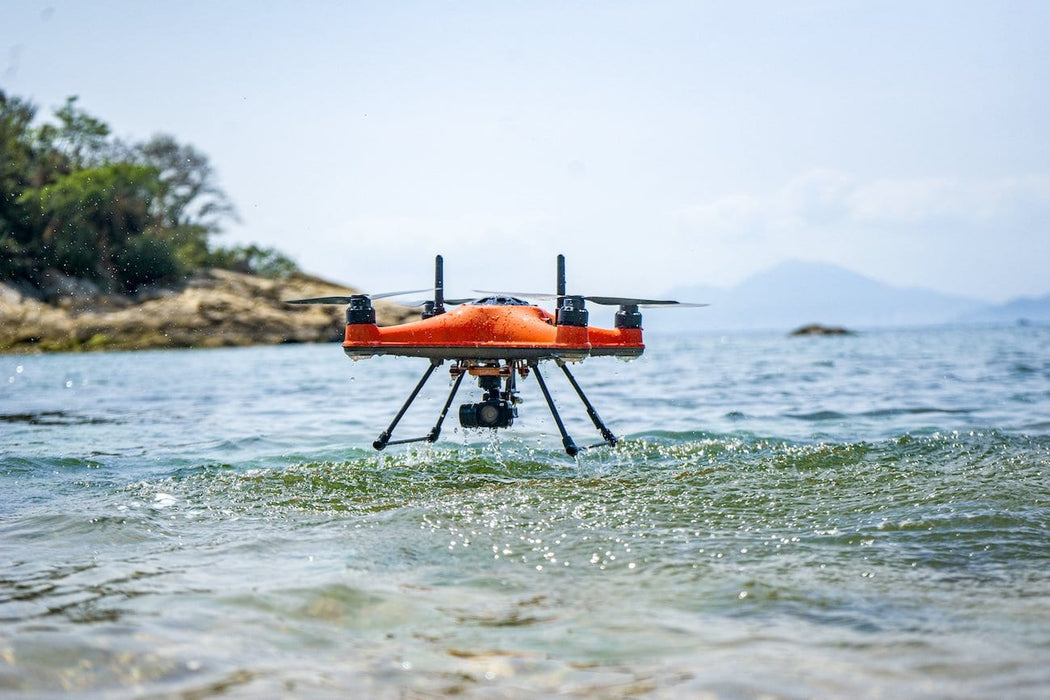

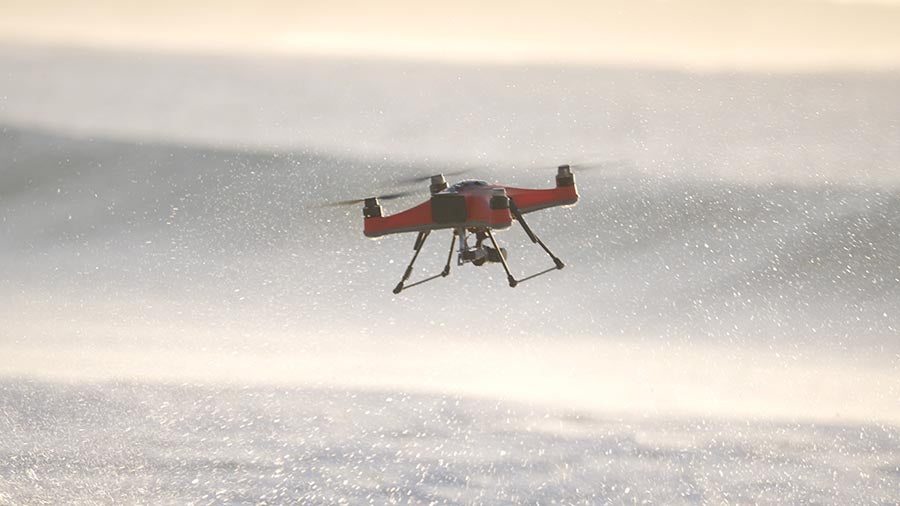

All-new IP67 seawater-proof body

Splash Drone 4 is designed to have the best waterproofing technology in the industry. The tough, rigid fuselage of is made out of industrial-grade ABS. Each SplashDrone 4 is factory-sealed to the slightest details and air-pressure tested for our exclusive 100% waterproof guarantee.The waterproof motors and internal electronics are also coated with corrosion-resistant coating adding an extra layer of protection over the already total waterproof design.

 Splash Drone 4 Fishing Drone

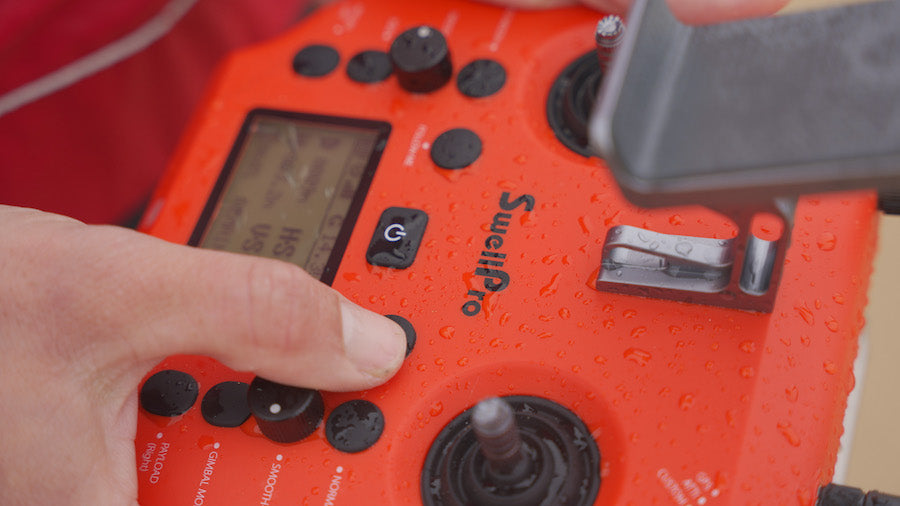

All-new IP66 Waterproof Remote Controller

The all-new Splash Drone 4 remote controller is now waterproof for your worry-free operation.You can even toss it on the water or rinse off the collected sand. The built-in GPS offers a variety of new features, including real-time tracking and dynamic return to pilot. The remote controller is now capable of offering multiple devices connection for a better collaborative operation.

 Splash Drone 4 waterproof remote control

 Swellpro Splash Drone 4 Remote features

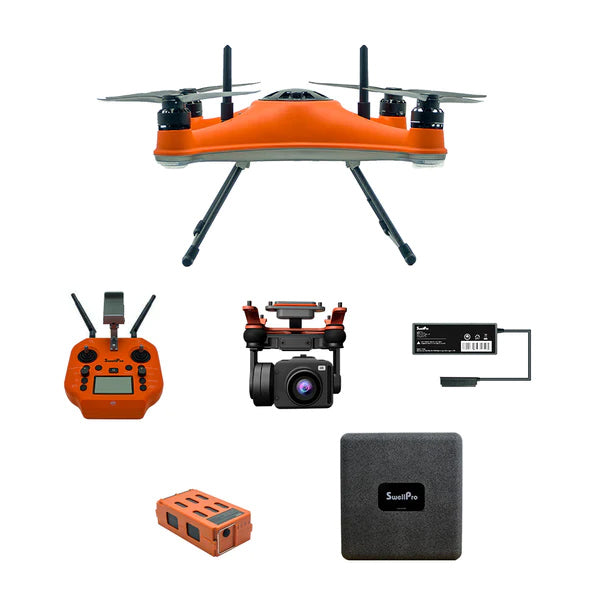

Interchangeable Camera

Multi-functional Payload Options: With its modular multi-functional Camera systems and open interface design, the Splash Drone 4 can quickly adapt to different tasks in the field.

For Filming

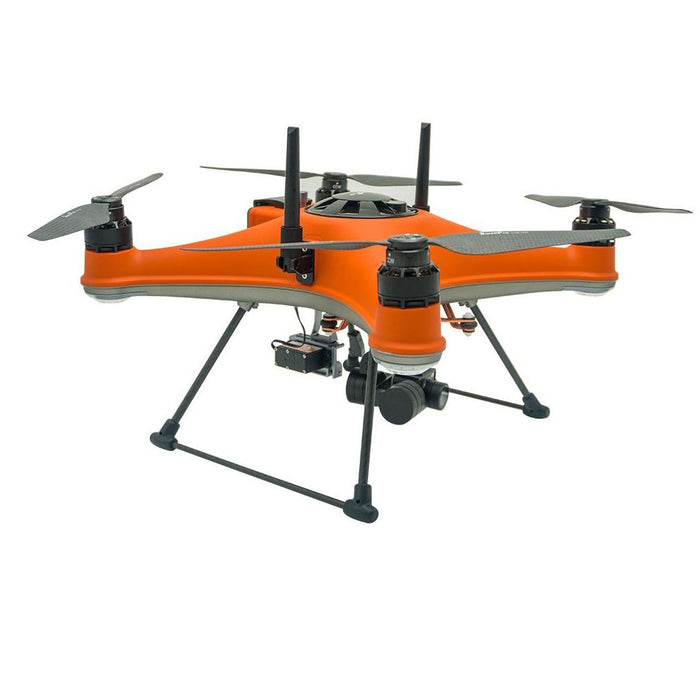

Waterproof 3-axis 4K camera

Capture smooth videos and crisp photos with the new, fully waterproof 4K camera stabilized by a 3-axis gimbal.GC3-S is our flagship gimbal camera. The powerful gimbal remains stable even in water while taking underwater shot. GC3-S now has Pro mode and supports RAW photo. ND filters can also be added for greater creative freedom.

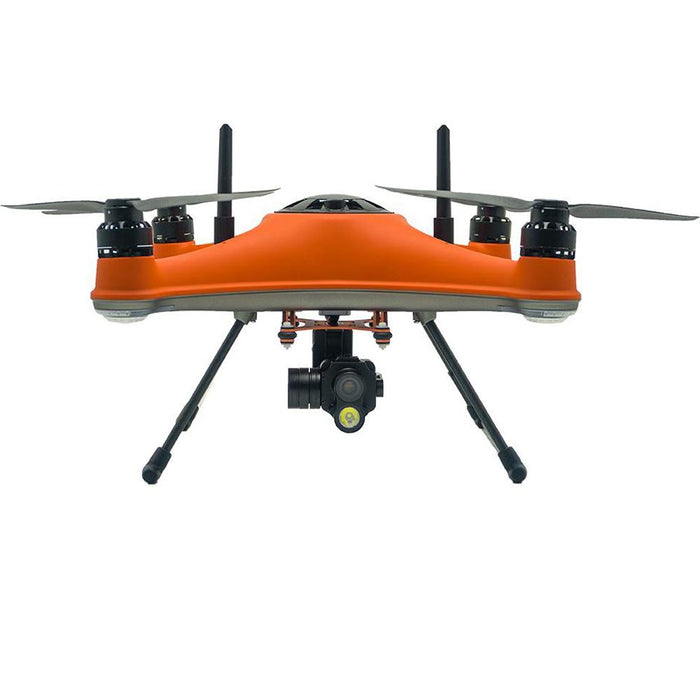

Waterproof 2 axis night vision camera

The new night vision camera comes with a spotlight that can illuminate nighttime scenes and restore true colors. Even without the LED, the camera itself can still capture decent details in low-light situations.

Splash Drone 4 Fishing Camera GC2

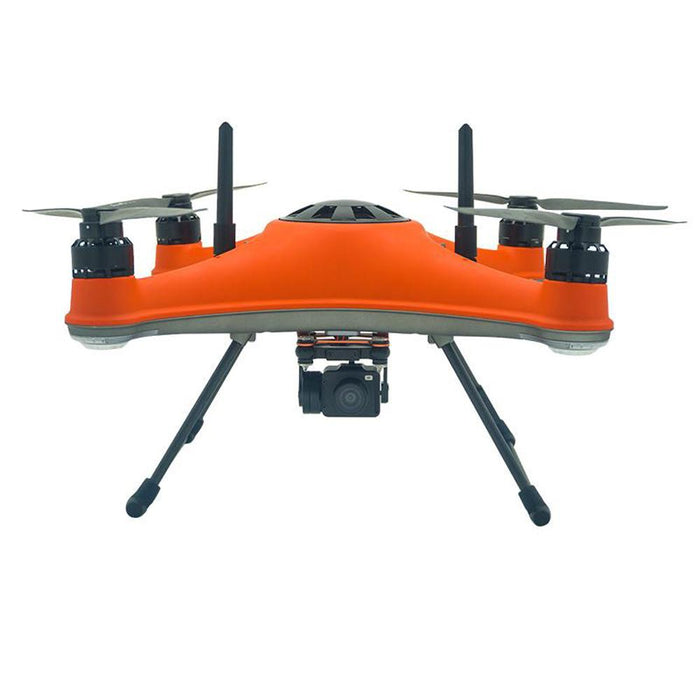

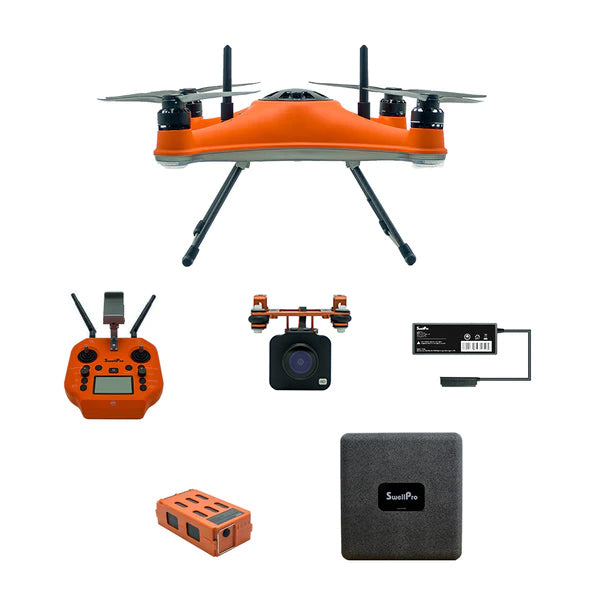

Waterproof 1-axis 4K camera

With the same sensor as GC3-S, GC1-S can capture high quality 4K videos and crisp photos. It also has Pro mode and supports RAW photo. ND filters can be added for greater creative freedom.

SwellPro Fishing Drone Bait Release

Economical Release without Camera

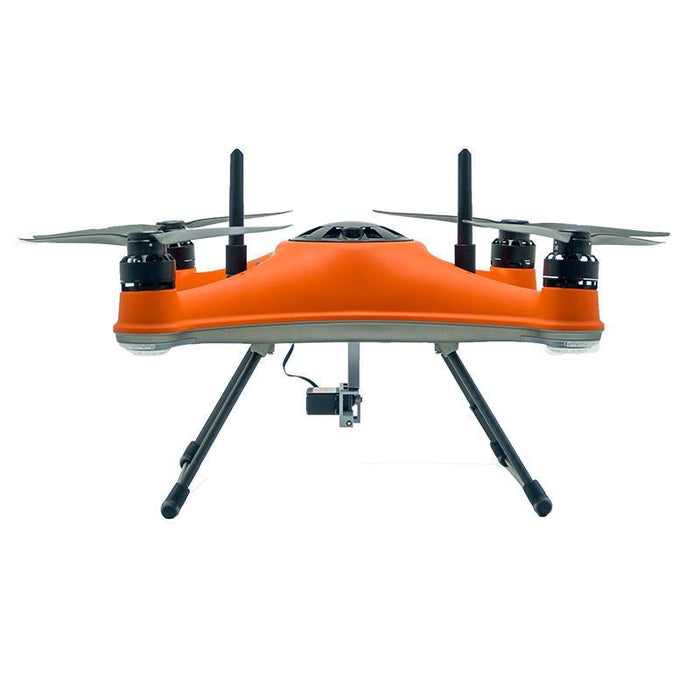

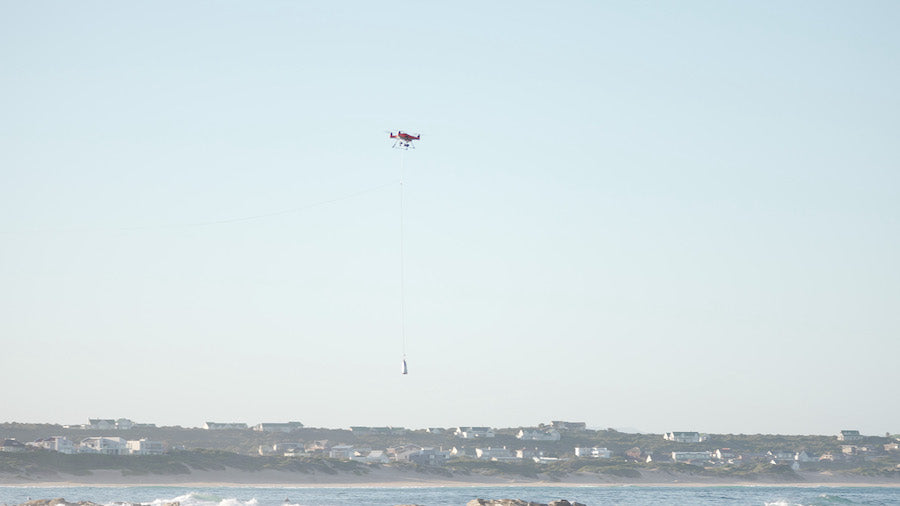

Waterproof Payload Release

The PL-1 payload release turns the SplashDrone 4 into an aerial bait dropping system that can deliver 2KG of bait and drop the bait at targeted locations up to 4km. The PL-1 can be mounted together with your choice of camera accessories for targeted payload release.Using the SwellPro NaviFLy app, you can program the bait drop or replay flights to successful fishing locations.

Splash Drone Fishing Bait Release



Innovative Smooth+ Flight Control

The patented "Smooth+" flight control allows the pilot to finely tune the Roll and Yaw of SplashDrone 4.Smooth+ makes professional, steady flight control as easy as turning the knobs.Want to take a steady shot? Simply switch to Smooth+ control, together with our 4K 3-axis gimbal, you can take high-quality, ultra-smooth & steady shots effortlessly.

Swellpro Splash Drone 4 fishing drone remote



5 Kilometer (3.5 miles) Distance

The latest 5.8GHz digital image transmitter and adjustable antennas ensures a clear and reliable image and control signal range to the SplashDrone 4 of over 5 kilometer while airborne.

Swellpro app Splash Drone 4

Important: Due to the nature of radio waves, when flying just 0.5m above the water, range is still up to 2.8km and floating on the water surface the transmission range is 500 meters.

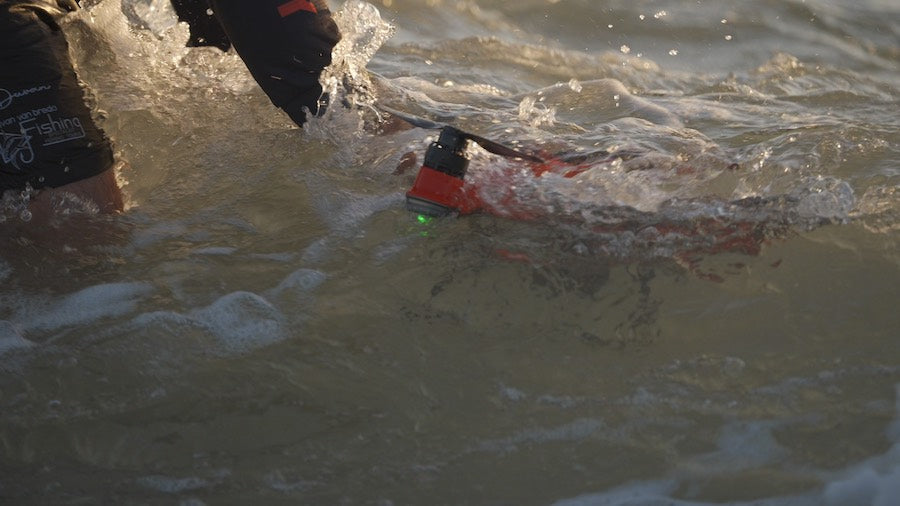

Powerflip

When the drone turns upside down on the water for any reasons, Power-Flip feature turns the drone back to the normal state to take the control back.

splash drone 4 on water floating



Dynamic Return to pilot

The Splash Drone 4 constantly records the GPS position of the remote controller, allowing the aircraft to always return to the pilot‘s position even if they are on a moving boat far away from the original take-off point.

Swellpro Splash Drone 4 GPS Return to home

Intelligent Follow me

Actively track the position of the pilot at a constant angle from the front, side, and back with the camera always pointing to the subject.


Orbit Follow

Automatically follow and orbit around a moving object at a chosen radius.

Splash Drone fishing bait release

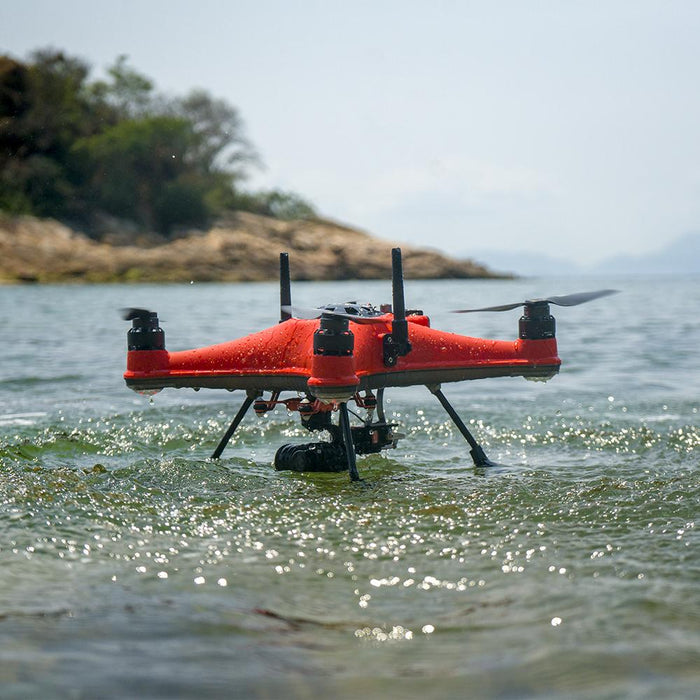

Boat Mode

Equipped with floating foams, the boat mode allows SplashDrone 4 to sail on water just like a boat, providing great underwater shots while remains the water area uninterrupted.Caves and other overhead environments can now be accessed by SplashDrone 4 for research, exploration, and underwater photography.

Splash Drone 4 Boat Mode

Unrivaled performance Propulsion System

The more powerful 740Kv Motor, 40A ESC together with optimized aerodynamic design allow for tight, responsive, and total control of SplashDrone 4 in any challenging weather conditions.

Splash Drone 4 Motors



Smart Battery

The new slide-in smart battery has an internal battery management system for real-time power monitoring and protection both in charging and discharging, ensuring battery health, safety and longer lifespan. The 6500mAh high-performance lithium technology cells provide up to 30 minutes of flight time.



Splash Drone 4 Smart Battery


Effortless Autopilot

The SwellPro Navifly APP

The newly-developed SwellPro Navifly APP enables logging, planning, recording of missions as well as the control and parameter setting of cameras and other modules in flight.

Swellpro Splash Drone 4 Mobile App

  Splash Drone 4 offers API for third-party software to gather data from sensors and to configure its control of aircraft, gimbal, camera, and third-party add-ons.

Splash Drone 4 Instruction Manual

SDK allows deep integration of third-party add-ons to SplashDrone 4.Together with API, SplashDrone 4 is truly a multi-purpose & multi-functional platform for your imagination.



Get the Splash Drone 4 Manual Click HERE

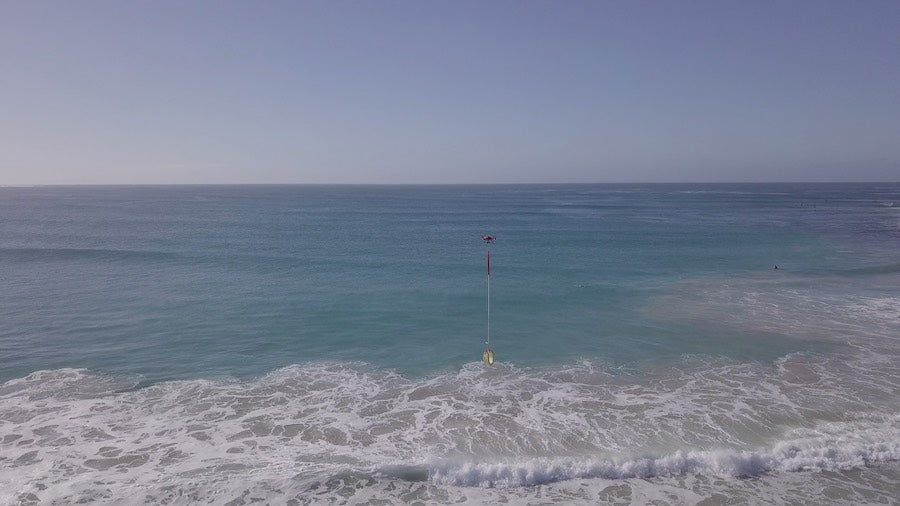

Splasg Drone 4 Rescue

Splash Drone 4 Aircraft Specifications

Waterproof Rating:

IP67

Weight(include battery and propellers):

2.18 kg

Axis Diameter:

450 mm

Max Ascend Speed:

4 m/s

Max Descend Speed:

4 m/s

Max Flight Speed:

22 m/s(ATTI), 10 m/s(GPS)

Max Tilt Angle:

ATTI: 12.5°; ATTI (fast): 25°

Max Altitude from Takeoff Point:

120m (GPS) / ATTI - no limitation

Max Wind Speed Resistance:

72 km/h | 20 m/s | 39 knot

Max Flight Time:

30 mins (no wind & no load);

(approx. 25 mins with GC3-S,approx.15 mins with load of 1.5kg)

Hovering Precision:

±0.5 m (vertical); ±0.5 m (horizontal)

Max Flight Distance:

5.0 km

Max Payload Capacity:

2.0 kg

Flight Control:

Hawk

Digital Video Transmission:

MultiSync

Motor:

#3509 - 740Kv (special coated)

ESC:

40A (flux)

Propellers:

#1242 carbon fiber quick release propellers

Motors:

#3509 - 740Kv

Operating Frequency:

5180 - 5875 MHz

Transmitter Power (EIRP):

FCC/IC: ≤ 24 dBm

CE/SRRC/MIC: ≤ 20 dBm

Working Temperature:

-10℃ ~ 40℃

Satellite Positioning Systems:

GPS/GLONASS

Pass-through Serial Port:

Connect to a third-party device and transfer the data of the third-party device to the remote control

UART:

Allows for TTL serial port to TCP, with baud rate of 115200

Wi-Fi Hotspot

IP: 192.168.1.101:2222

Power Input:

12V/2A | 5V/2A



Remote Controller (MRC)

Waterproof Rating:

IP66

Operating Frequency:

5180 - 5875 MHz

Transmitter Power (EIRP)

FCC/IC: ≤ 24 dBm

CE/SRRC/MIC: ≤ 20 dBm

Real-time Video Transmission:

720P@30fps

Latency:

200 ms (It depends on the actual shooting environment and mobile devices)

Battery:

2S 3600mAh

Working Time:

7 hours

Working Current/Voltage:

0.3A/7.4V

Ethernet Port:

IP: 192.168.2.220:2222

Wi-Fi Hotspot

IP: 192.168.2.220: 2020; Default password: 12345678

Mobile Device Mount:

Suitable for any size phones;

Tablets require an larger mount(sold separately)

Screen:

2.68 inch, 128x64

Working Temperature:

-10℃ - 40℃

Remote Charging time:

3 hours

Power Input:

5V/2A



Intelligent Battery (IB4)

Nominal Capacity:

6600mAh

Voltage:

14.8V

Type:

Intelligent 4S LiPo

Watt Hours:

97.68 Wh

Size:

153.6*82.4*48.3mm

Weight:

735 g (±5 g)

Working Temperature:

-10℃ - 40℃

Charging Time:

1.5 hour

Max Charging Power:

84 W



Charger

Input

100 – 240V, 50/60Hz

Output:

16.8V@Dynamic Current / 5V@1.5A

Rated Power:

84.5 W



Mobile Device connection



Operation Frequency

5180 - 5875 MHz

Max Transmission Distance

(Unobstructed, free of interference)

10 m



APP



Mobile App Name

NaviFly

Live View Quality

720p@30fps

Latency

< 250 ms (depending on environmental conditions and mobile devices)



1-Axis Gimbal Camera (GC1-S)



Waterproof:

IP67

Axis:

1-axis (tilt)

Controllable range:

tilt: -90° to 0°

Max control speed:

tilt: 60°/s

Weight:

Approx. 145g

Size:

71*55*65mm





Sensor:

1/2.3" 12M SONY CMOS

Lens:

F4.53mm f/2.65, FOV: 92.6°

ISO Range:

100 - 3200

Shutter Speed

16 - 1/16000 s

Photo Resolution:

4:3/16:9  12MP

Burst Mode:

3/5/10 pcs

Interval Shot:

1/3/5/10s

Video Resolution:

4K: 3840*2160/30P | 2.7K: 2704*1520/60P | FHD: 1920*1080 30/60/120P | HD: 1280*720/240P

Max Video Bitrate:

64 Mbps

Photo Format:

JPEG / DNG (RAW)

Video Format:

MP4 / MOV

Memory Card:

Micro SD card: supports up to 128GB of capacity, write speeds ≥ 60 MB/s, and transfer speed rating of Class 10 or above, or with UHS-1 rating.

Working Temperature:

-10℃ to 40℃



2-Axis Night Vision Gimbal Camera (GC2-S)

Waterproof:

IP67

Axis:

2-axis (tilt, roll)

Controllable range:

tilt: -90° to 0°

Max control speed:

tilt: 60 °/s

Weight:

Approx.220g

Size:

113*92*80mm





Sensor:

1/2" 2M Starlight CMOS

Lens:

FOV: 66°

Burst Mode:

3/5/10pcs

Interval Shot:

1/3/5/10s

Video Resolution:

FHD: 1920*1080 30/60P | HD: 1280*720 120/60P

Max Video Bitrate:

64 Mbps

Photo Format:

JPEG

Video Format:

MP4 / MOV

Memory Card:

Micro SD card: supports up to 128GB of capacity, write speeds ≥ 60 MB/s, and transfer speed rating of Class 10 or above, or with UHS-1 rating.

Working temperature:

-10℃ to 40℃





3-Axis Gimbal Camera (GC3-S)



Waterproof:

IP67

Axis:

3-axis (tilt, pan, roll)

Controllable range:

tilt: -90°to 0°

Max Control Speed:

tilt: 60°/s

Weight:

Approx. 310g

Size:

113*92*110mm





Sensor:

1/2.3" 12M SONY CMOS

Lens:

F4.53mm f/2.65, FOV: 92.6°

ISO range:

100 - 3200

Shutter Speed

16 - 1/16000 s

Photo Resolution:

4:3/16:9  12MP

Burst Photo:

3/5/10 pcs

Interval Photo:

1/3/5/10s

Video Resolution:

4K: 3840*2160/30P | 2.7K: 2704*1520/60P | FHD: 1920*1080 30/60/120p | HD: 1280*720/240p

Max Video Bitrate:

64 mbps

Photo Format:

JPEG / DNG (RAW)

Video Format:

MP4,MOV

Memory Card:

Micro-SD card with a maximum capacity of 128GB, write speed ≥ 60 MB/s, supports Class 10 or above & UHS-1 rating

Working temperature:

-10℃ to 40℃



3-Axis Thermal Gimbal Camera (GC3-T)



Waterproof:

IP67

Axis:

3 axis (tilt, pan, roll)

Controllable range:

tilt: -90° to 0°

Maxcontrol speed:

tilt: 60°/s

Weight:

Approx. 450g

Size:

110*100*115mm



Low-light Camera



Image Sensor:

1/2" 2M Starlight CMOS

Lens:

FOV: 66°

Burst Photo:

3/5/10pcs

Interval Photo:

S1/3/5/10s

Video Resolution:

FHD: 1920*1080 30/60p | HD: 1280*720 120/60p

Max Video Stream:

64 Mbps

Photo Format:

JPEG

Video Format:

MP4 / MOV

Support Memory Card:

Micro SD card: supports up to 128GB of capacity, write speeds ≥ 60 MB/s, and transfer speed rating of Class 10 or above, or with UHS-1 rating.

Working temperature:

-10℃ to 40℃



IR Camera



Image Sensor:

Vanadium oxide uncooled infrared focal plane detector

Lens:

19mm/25mm

Resolution@frame rate:

640*512 @30p/48p/50p

Palette:

White hot / black hot / Rainbow / Rainbow high contrast / iron red / lava / Sky / medium gray / grey red / purple orange / Special 1 / warning red / ice fire / cyan red / special 2 / gradient red / gradient green / gradient blue / warning green / warning blue

Crosshairs:

Show (default), hide, move

Contrast Ratio:

Slider adjustment (0-255)

Brightness:

Slider adjustment (0-511)

DDE gear (image enhancement):

Off / On (default on)

Temperature measurement OSD on / off:

Off / On (the default displays the highest, lowest, and center point temperatures)

Temperature measurement unit:

Centigrade, Kelvin, Fahrenheit

Temperature measurement alarm:

Off, low temperature alarm, high temperature alarm, high and low temperature alarm

Low temperature alarm setting:

-20℃~+150℃

High temperature alarm setting:

-20℃~+150℃

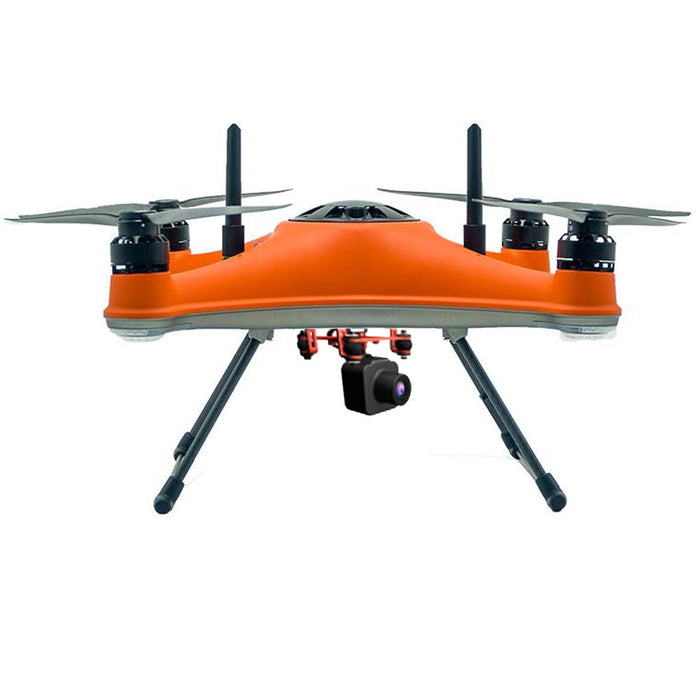

Fixed Angle Camera (FAC)



Waterproof Rating:

IP67

Weight:

Approx. 85 g

Size:

45*44*40mm





Image Sensor:

1/2.7" 2M SONY CMOS

Lens:

F2.2mm f/5.06, FOV: 130°

Burst Photo:

3/5/10pcs

Interval Photo:

1/3/5/10s

Video Resolution:

FHD:1920*1080 30/60p,HD:1280*720 120/60p

Max Video Stream:

30 Mbps

Photo Format:

JPEG

Video Format:

MP4 / MOV

Memory Card:

Micro SD CARDS with a maximum capacity of 128GB, write speed ≥30 MB/s, supports Class 10 or above & UHS-1 rating

Working temperature:

-10℃ to 40℃



Payload Release (PL1-S)



Waterproof Rating:

IP67

Weight:

59*38*50mm

Size:

96 g

Max. loading weight:

2 kg



Parachute (PTE4)



Size:

155*134*122mm

Weight:

500 g

Max. loading weight:

6 kg

Release:

Manual/Automatically



Life Buoy (LB1)



Weight:

366 g

Size:

205*100*65 mm

Material:

Polyester Oxford neoprene

Airbag material:

Nylon+ TPU

Inflation Time:

less than 5s

Buoyancy:

150 N

Buoyancy time:

more than 48 hrs

Loss of buoyancy after 24 hours:

≤5%

Carbon dioxide weight:

3 / 8-24UNF,24g



Extension Bar



Weight:

366 g

Length:

70 mm

Material:

Carbon fiber tube & alluminum base



Dronar 01 (Fish Finder)



Depth Range Max:

120 feet (40 m)

Depth Range Min:

2 feet (0.6 m)

Sonar Frequency:

125 kHz Single Beam

Cone Angle:

30°

Audible Alarms:

Fish, Depth, Low Battery

Working Temperture:

-20℃ to 80℃

Transmission Distance:

10 m with phone; 3km with drone

Interface:

Dronar APP

Battery:

3600 mAh, 11.1 V; 39.96 Wh

Connection:

5Ghz Wi-Fi
