Swan K1 Mapping Platform VTOL Drone

Sold out
Original price $5,499.00 - Original price $5,757.00
Original price
$5,499.00
$5,499.00 - $5,757.00
Current price $5,499.00

The Swan K1 Mapping wing is the tool mapping and surveyors are using to get the job done. Fast, Accurate and efficient.

1 hour flight time | 24MP high resolution | Centimeter accuracy | 2-9 square kilometers per flight | PPK module, easy to handle

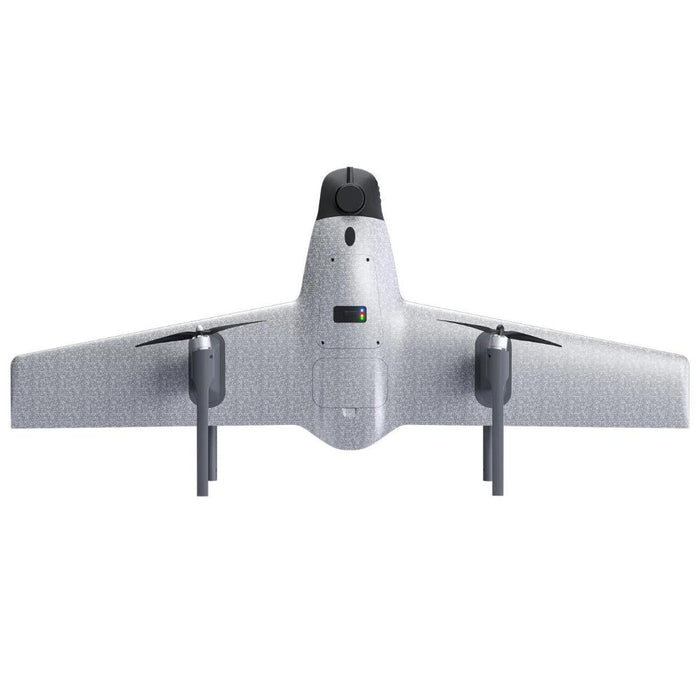

Swan-K1 Mapping vtol mapping drone

Swan K1 Mapping drone uav wing

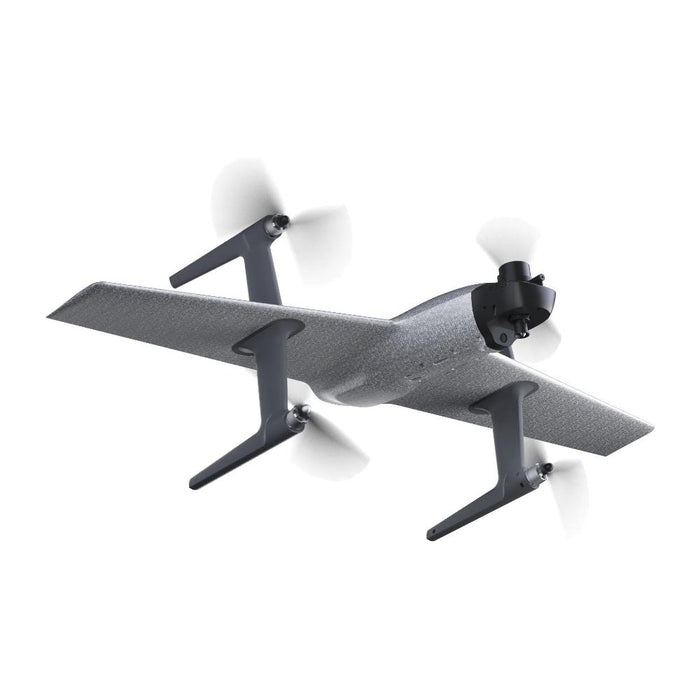

Swan-K1 Mapping drone uav surveying drone vtol

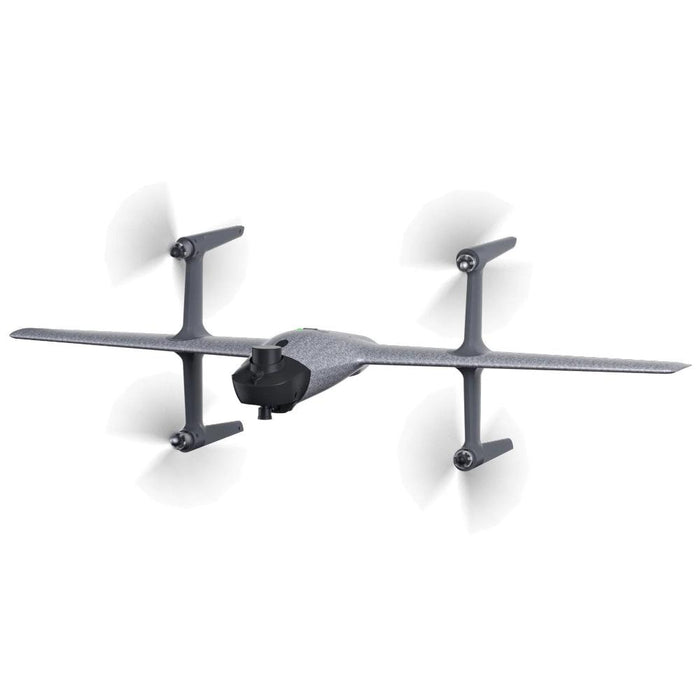

Surveying drone uav vtol for mapping

Swan-K1 Mapping uav drone mapping amafi

Specification

Camera

Size :

75×65×90mm(include 25mm lens)

Weight:

220g( include lens )

Pixel:

24.3 million pixels

Camera frame:

 APS frame

Sensor size:

23.5×15.6mm

Miximum resolution:

24MP

Lens mount:

Sony E mount

Access current:

2~7S 10~30V

PPK module

Operating Temperature:

 -30~+75℃

GNSS Signal:

GPS、GLONASS、BDS、Galileo

GNSS channel:

72

Update rate :

10Hz/5Hz

Input voltage :

5V

Antenna voltage:

3.3V

Average current :

25mA

Data storage :

16GB

Data Format :

RINEX

Antenna interface :

Mcx

Light:

Trigger, satellite, storage, power

Horizontal accuracy:

2cm+1ppm

Vertical accuracy :

4cm+1ppm

Work efficiency

Overlap rate:

80×70 resolution  5/10/20 cm  60min flying time

1:500 Flying height  210m:

 2-3 square kilometers per flight

1:1000 Flying height  420m :

4-5 square kilometers per flight

1:2000 Flying height  840m:

8-9 square kilometers per flight

Operation accuracy

1:500 Phase-free  :

Horizontal accuracy≤ 5cm

Height accuracy≤ 5cm

1:1000 Phase-free:

Horizontal accuracy≤ 8cm

Height accuracy≤ 10cm

1:2000 Phase-free:

Horizontal accuracy≤ 15cm

Height accuracy≤ 20cm

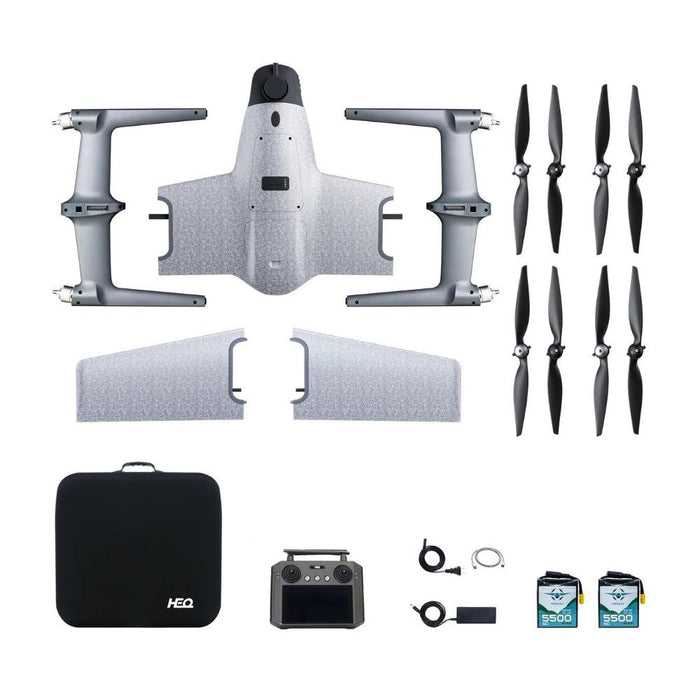

What is in the box

1x Swan-K1 Mapping aircraft ;

2x set of quick detachable nylon propellers ;

1x Radio controller(with HD touch screen);

1x Carry case;

2x 5500mAh 15.2V Lipo Battery;

1x Power charger;

1x Aircraft User Manual and Disclaimer;

1x Custom 24 Mega pixels SONY camera;

1x PPK module;
