swellpro cg3-t thermal camera

Thermal Camera for Splash Drone 4 GC3-T

$5,999.00 - $7,798.00
$5,999.00
$5,999.00 - $7,798.00
$5,999.00

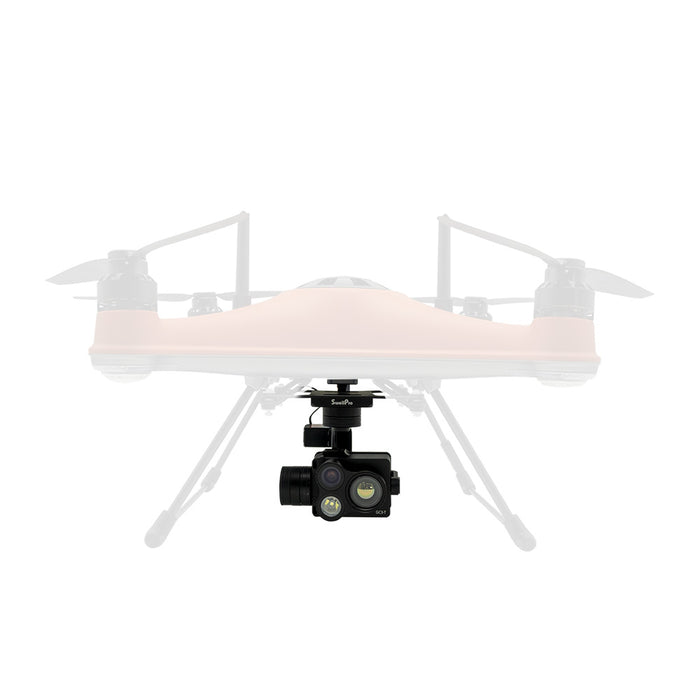

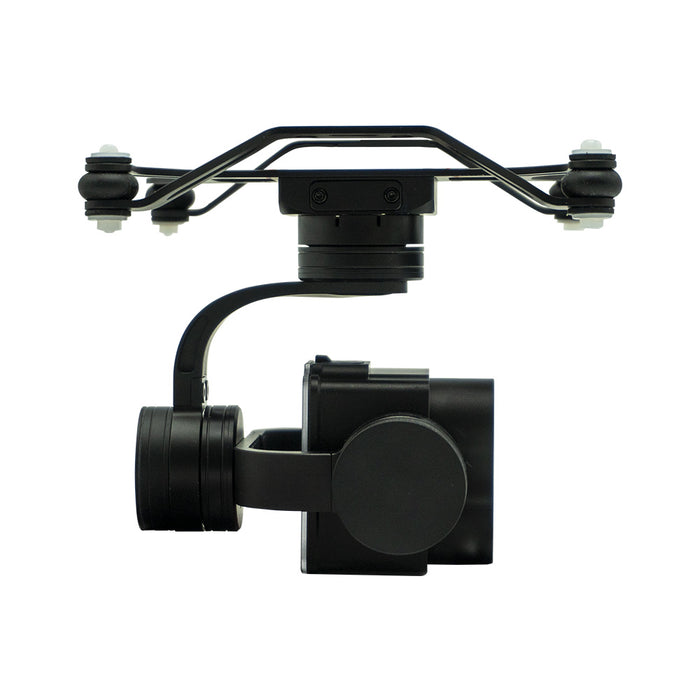

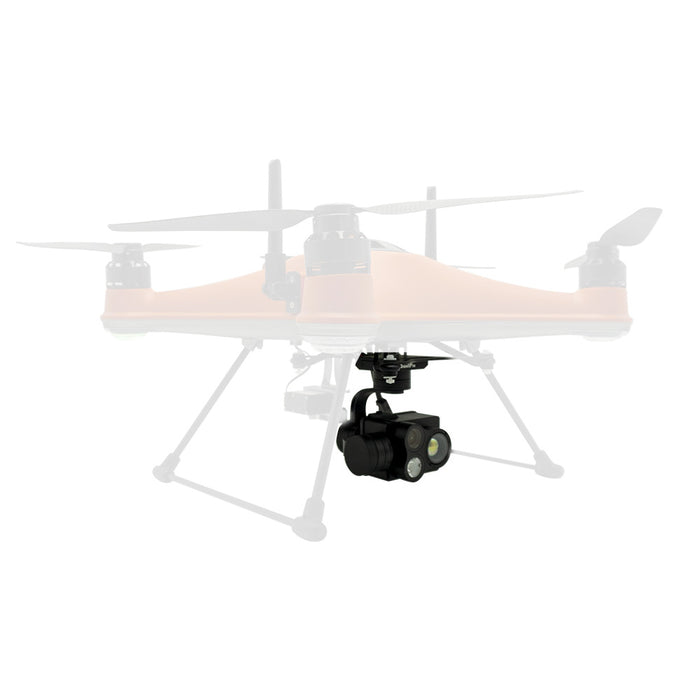

GC3-T Waterproof 3-axis gimbal thermal camera

splash drone thermal camera

See better

GC3-T waterproof 3-axis gimbal thermal camera combines both a high resolution thermal infrared camera and a full HD low-light camera with a dimmable LED flashlight, which can provide both infrared and visible light imaging simultaneously. Use the thermal imaging to identify the object of interest, then quickly switch to the low-light mode to better identify the object with more color details. The integration of GC3-T with SplashDrone 4 empowers lots of industries to accomplish their missions smarter and faster with far less risk and cost.

drone night thermal camera

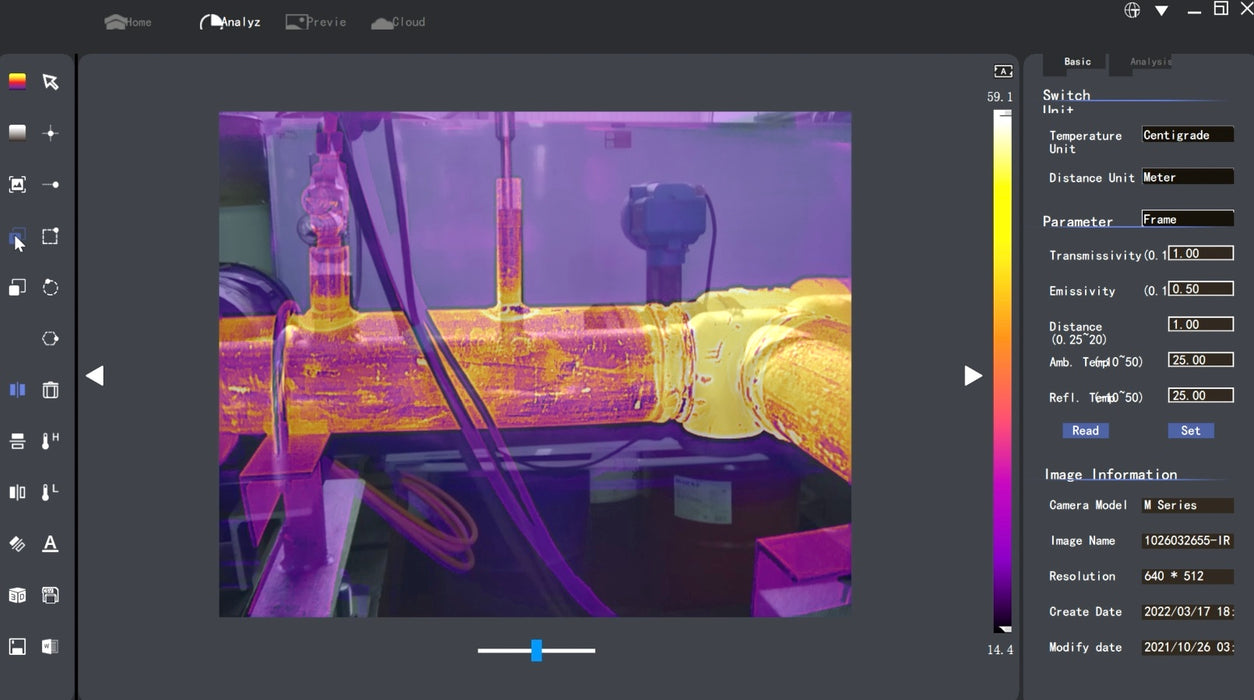

The thermal infrared camera features high resolution (640 x 512) and high sensitivity (≤ 50mk@f/1.0) infrared thermal images. It can detect temperature ranging from -20℃ to 150℃ / -4℉ to 932℉ with an accuracy of ±3℃ in real time.

splash drone thermal camera gc3-t

The low-light camera can capture full HD imaging in the dark environment when the regular camera cannot return any images. The dimmable LED flashlight can still maintain the vision in total darkness. With the low light camera, whenever you find the object of interest using the infrared thermal camera, you can always switch back to give a visual confirm of the object.
Splash Drone thermal Camera

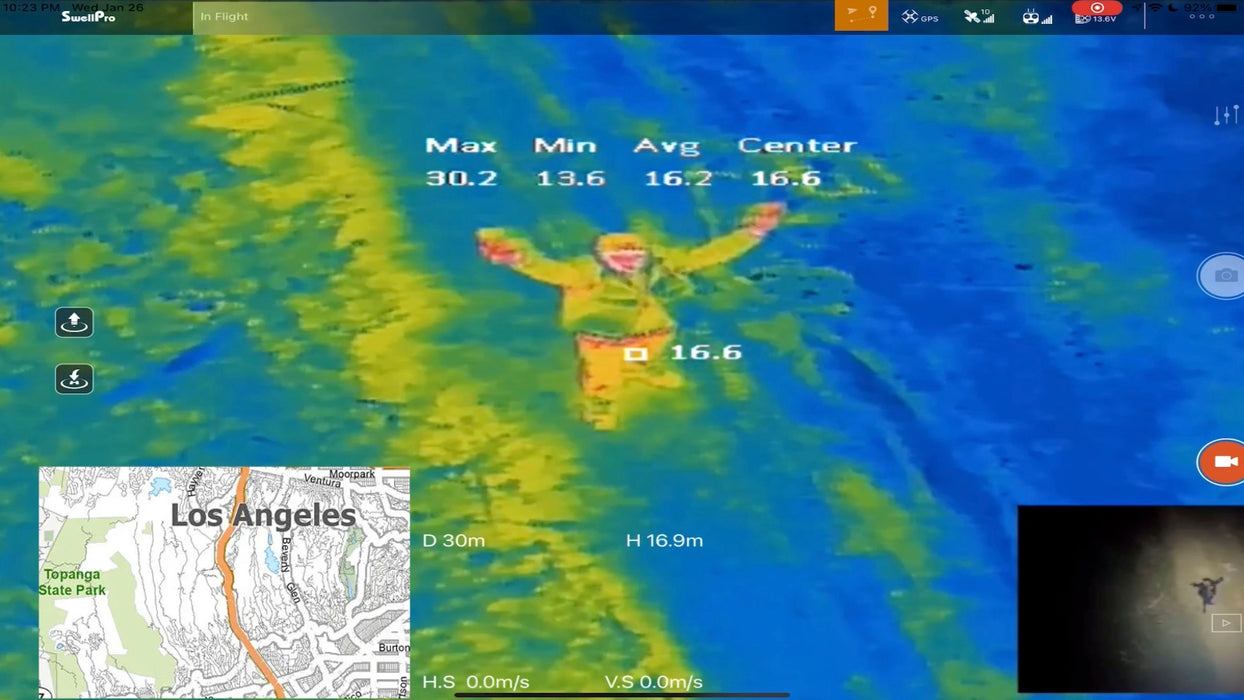

Temperature OSD

Real-time on-screen display of the maximum, minimum, average and center temperatures detected by the thermal camera.

splash drone 4 GC3-t thermal camera

Specification

General

Waterproof rating: IP67

Weight: About 430 g

Size: 134.5*134.5*117 mm

Memory card: Micro SD card: supports up to 128GB of capacity, write speeds ≥ 40 MB/s, recommend using Class 10 or above, or with UHS-1 rating.

Working temperature: -10°C - 40°C

Gimbal

Stabilization: 3-axis (tilt, pan, roll).

Controllable range: Tilt: -90° to 0°

Max control speed: Tilt: 60 °/s

Thermal Camera

Thermal Imager: Uncooled VOx Microbolometer

Sensor Resolution: 640 x 512 @50FPS

Lens

Focal length: 19mm

Aperture: f/1.0

FOV: 22°H x 18°V

IFOV: 0.63 mrad

Pixel Pitch: 12 μm

Spectral Band: 8~14 μm

Sensitivity (NETD): ≤50mK @25℃, f/1.0 (≤40mK Configurable)

Scene Range: -20℃ to +150℃ (± 3℃)

Anti-flicker: Auto, 50Hz, 60Hz

Photo format: JPEG

Video format: MP4，MOV


Low Light Camera

Sensors: 1/2" 2M Starlight CMOS

Lens: FOV: 92.6°

Burst mode: 3/5/10 shoots

Video resolution: FHD: 1920*1080@50fps | HD: 1280*720@50fps

Anti-flicker: Auto, 50Hz, 60Hz

Max data stream: 64 Mbps

Photo format: JPEG

Video format: MP4，MOV
